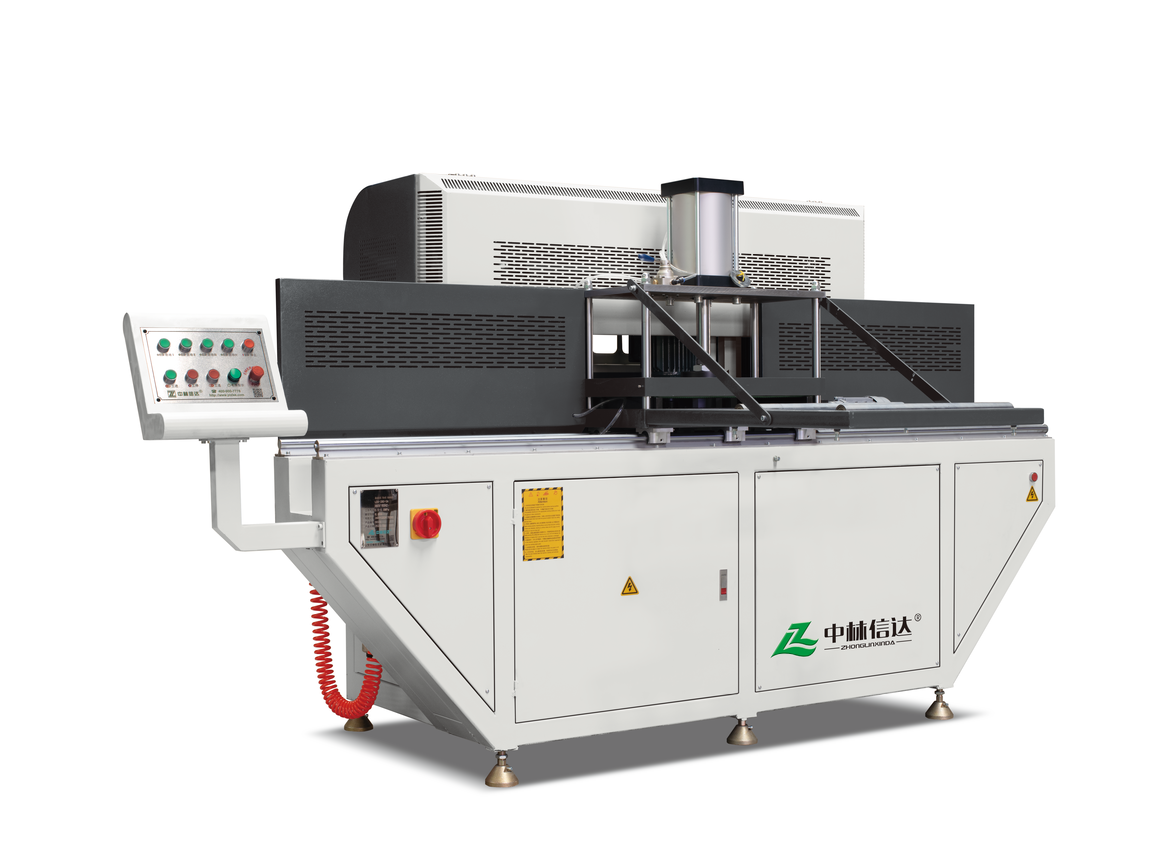

- 适用于铝型材端面的铣削加工，以适应不同截面型材的配合。
- 可一次铣削多根型材，不同型材调节简便、快捷，生产效率高。
- 配备立刀装置，实现加强中梃铣削；电机倒立安装，防止进水。
- 采用欧式喷雾装置，每个喷雾可单独使用、也可同时使用。
- 德国太敬滑动单元，亚德客二联体、电磁阀；法国施耐德电器。
- 电机上下调整行程可达 150mm，前后调整行程可达 100mm。
- It is suitable for milling the end face of aluminum proile to adapt to the cooperation of proiles with diferent sections.
- Multiple proiles can be milled at one time, the adjustment of diferent proiles is simple and fast, and the production eiciency is high.
- Equipped with vertical cutter device to realize intensiied milling; The motor is installed upside down to prevent water from entering.
- European spray device is adopted, and each spray can be used independently or simultaneously.
- Germany Taijing sliding unit, Yadeke combo, solenoid valve; Schneider electric appliances of France.
- The up-and-down adjustment stroke of the motor can reach 150mm, and the forward and backward adjustment stroke can reach 100mm.
→输入电源 | Power supply | 380V/50Hz |
→总功率 | Total motor power | 8.8kW+0.75kW |
→电机转速 | Motor rotary speed | 2800r/min |
→工作压力 | Working air pressure | 0.5~0.8MPa |
→主轴直径 | Spindle diameter | Φ32mm |
→铣刀直径 | Milling cutter diameter | Ф250mm |
→工作台进给行程 | Table feed stroke | 0~1050mm |
→工作台尺寸 | Working table size | 630×320mm |
→电机调整行程 | Motor adjustment stroke | 0~120mm |
→开榫最大尺寸 | Maximum tenon size | 40mm |
→外形尺寸 | Overall dimension | 2600×1200×1700mm |
→重量 | Weight | About 840kg |
