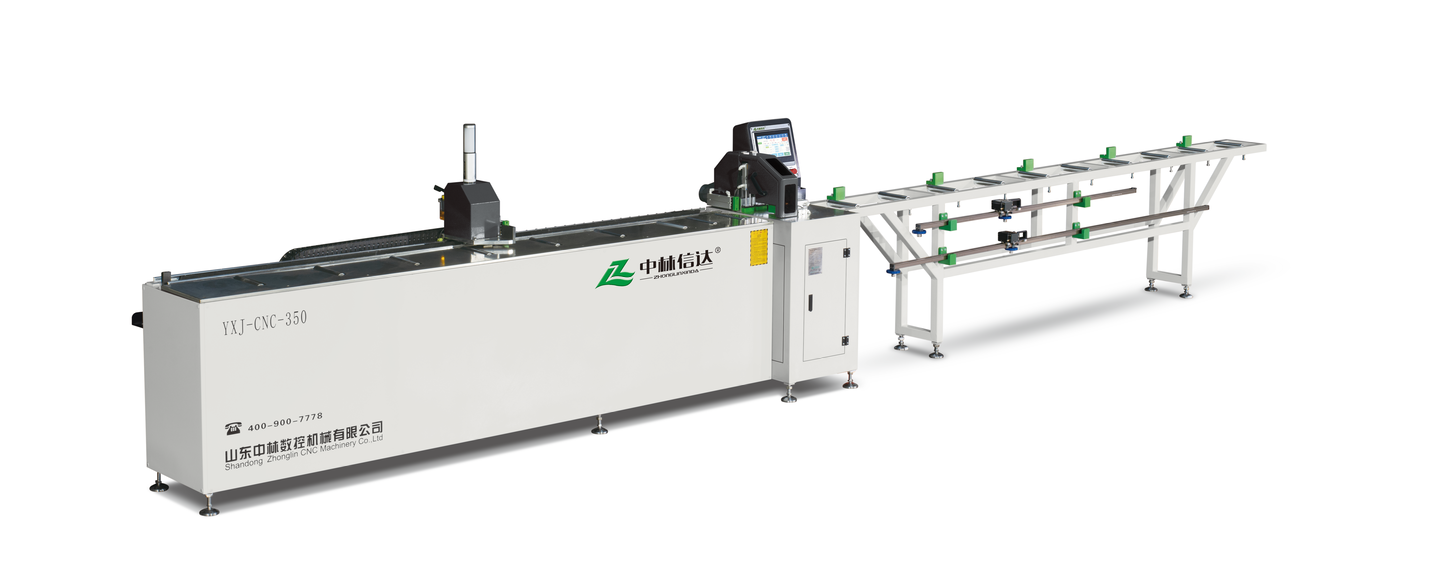

无线测量压线切割中心 YXJ-CNC-350

微信
新浪微博
QQ
QQ空间
豆瓣网
百度贴吧
13805311796
产品详情


-   适用于铝门窗压线型材 90 度的切割。

-   蓝牙传输,精度准确,无需二次修改。

-   自动发送测量数据,方便精准。

-   傻瓜式操作 :自动传输测量数据,精确的数控定尺,一次切出所需 尺寸,无需修改。

-   高精度:配备手持式无限测量机构,实时测量压条尺寸,高精度主 轴锯片电机。

-   高效率: 1 台省个大师傅,比传统切割方式效率提升2 倍。

-   独有的排屑设计,使现场更整洁。

-   Suitable for 90-degree cutting of aluminum door and window proile.

-   Bluetooth transmission, accurate, no need for secondary modiication.

-   Automatically send measurement data, convenient and accurate.

-   Foolish operation: automatic transmission of measurement data, accurate   numerical control length,cutting out the required size at one time without modiication.

-   High   precision: equipped with   hand-held   infinite   measuring   mechanism,   real-time measurement of layering size, high-precision spindle saw blade motor.

-   High   efficiency: one set saves a master, which is twice as efficient as the traditional cutting method.

-   Unique chip removal design makes the site cleaner.

→输入电源

Power supply

380V/50Hz

→总功率

Total motor power

3.0kW

→主轴电机

Spindle motor power

1.5kW

→X轴伺服功率

X-axis servo power

0.75kW

→工作压力

Working air pressure

0.5~0.8MPa

→耗气量

Air consumption

40L/min

→锯片规格

Saw blade speciication

Ф300×120×Ф30mm Z=100

Ф350×120×Ф30mm Z=100

→切割型材宽度

Cutting width

150mm

→切割型材高度

Cutting height

70mm

→锯切角度

Sawing angle

90°

→定尺精度

Length accuracy

±0.1mm

→定位长度

Positioning length

0~3000mm

→重复精度

Repetitive accuracy

0.1mm

→磁栅无线卡尺

Measuring caliper

L=1800mm L=2800mm

→外形尺寸

Overall dimension

7760×1700×2000mm

→重量

Weight

About 686kg
