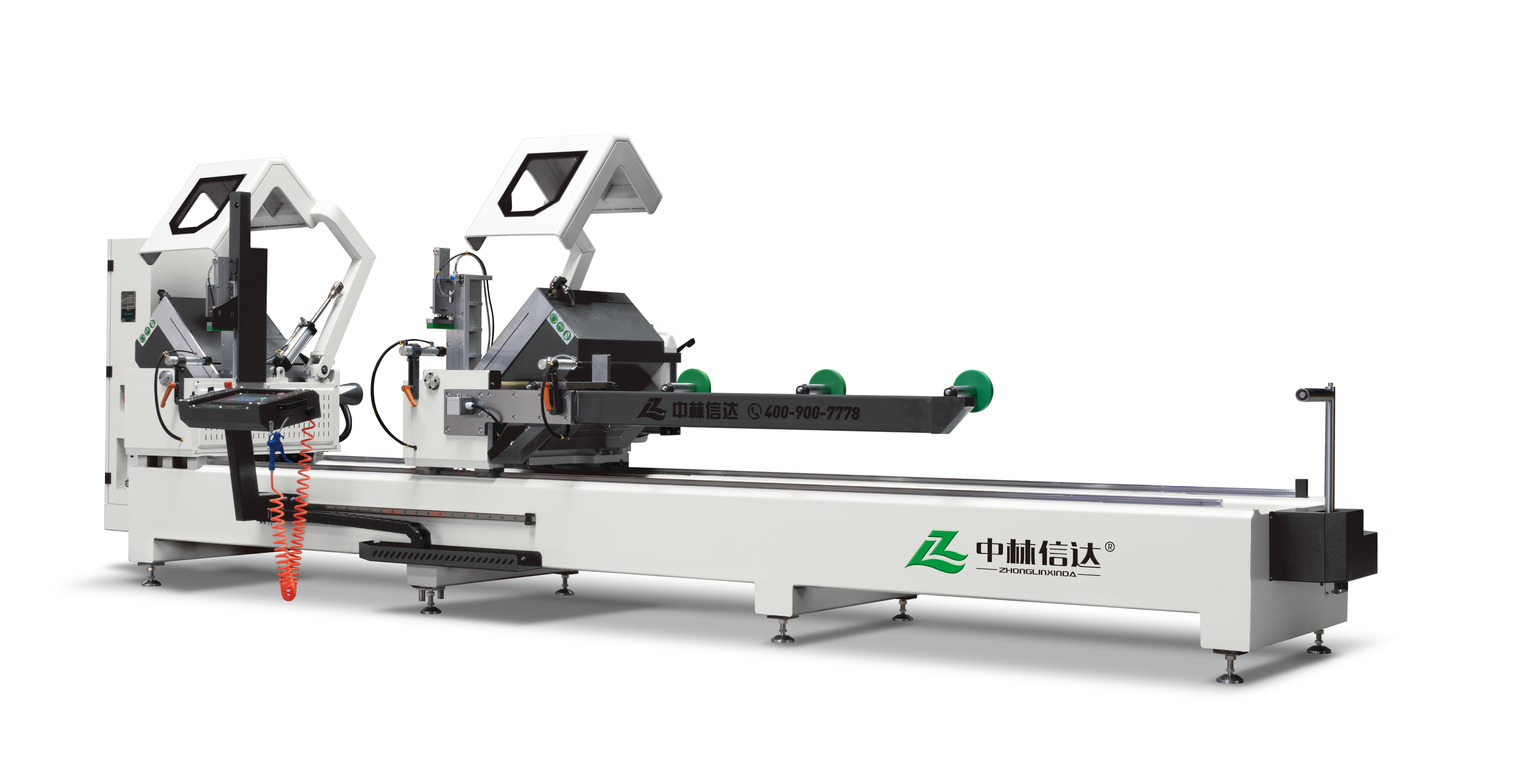

数控智能高精密双头锯ZLSJ-CNC-500*140

数控智联高精密双头锯（ERP) ZLSJ-CNC-ERP-500*140

数控高精密双头锯ZLSJ-DC-500*140

-   数控控制切割长度，尺寸准确。

-   汇川总线绝对值系统，机器开机无需回原点位置，机头移动高 速。

-   系统内配备超长超短切割。

-   可以和优化软件联机，U 盘倒入料单，傻瓜式操作。

-   右机头的左右移动是通过齿轮，齿条（研磨级）带动的。齿条本身 具有传动精度高，运行平稳，噪声低等特点，有效的保证了右机头 定位的准确性，重复定位精度可以达到0.02mm。

-   专用金刚石锯片，切割进给导轨采用进口直线导轨。

-   锯片进给由液压阻尼缸提供动力。

-   机头左右移动采用进口直线导轨。

-   带有自动测料高，自动托起功能，右机头断料避让系统。

-   台达PC 机 ，禾川伺服，昆仑通泰显示屏。

-   CNC control cutting length, accurate size.

-   Huichuan   bus absolute value   system, the   machine does   not   need to   return to the original position when starting, and the nose moves at high speed.

-   The system is equipped with ultra-long and ultra-short cutting.

-   Can be online with optimization software,   U disk into the   bill of materials, fool-like operation.

-   The left-right movement of the right machine head is driven by gears and racks (grinding stage). The   rack itself has the characteristics of high transmission   precision, stable   operation and low noise, which efectively ensures the accuracy of the positioning of the right nose, and the repeated positioning accuracy can reach 0.02 mm.

-   Special diamond saw blade, cutting feed guide adopts imported linear guide.

-   The feed of saw blade is powered by hydraulic damping cylinder.

-   The machine head moves left and right with imported linear guide rail.

-   With automatic material height measurement and automatic lifting function, the right machine head is cut of and avoided.

-   Delta PC, Hechuan servo, Kunlun Tongtai display screen.
