产品详情

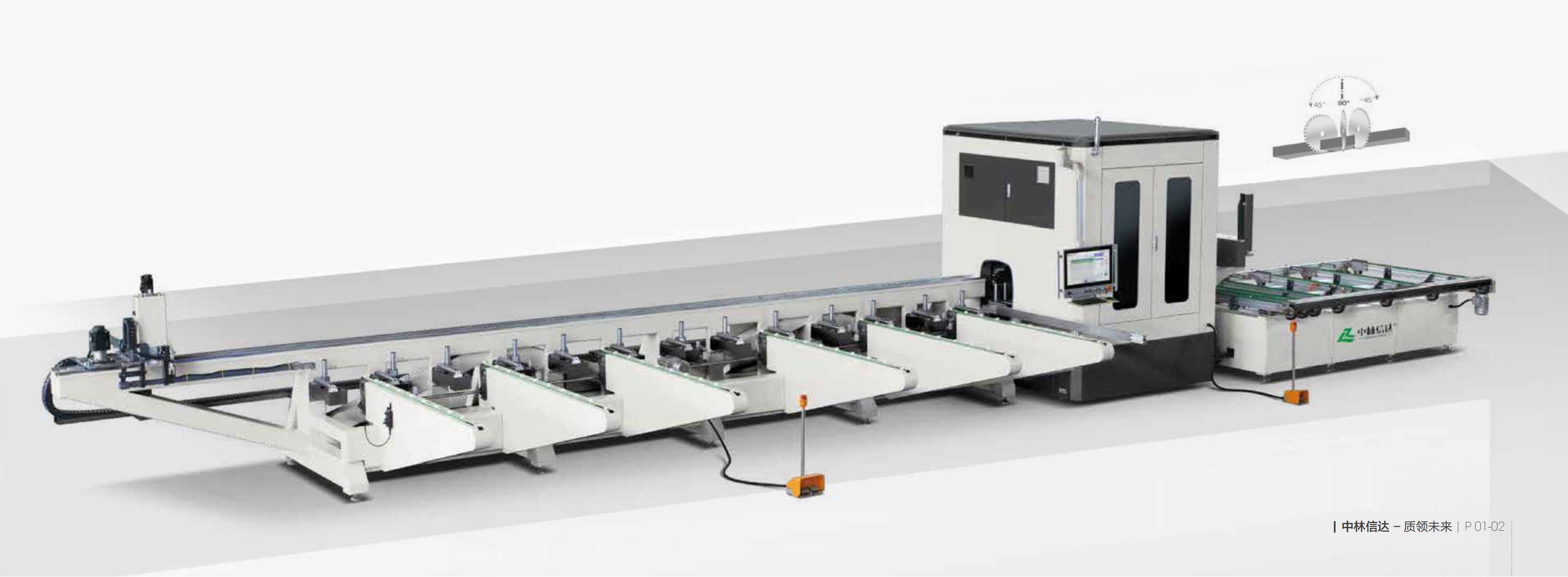

ZLJQ-CNC-6500自动切割中心 02.jpg

- 该机是我公司为系统门窗、节能门窗铝型材大型加工企业而研发的数控智能切割中心。

- 采用德国 PA( 大族）系统和进口总线伺服驱动控制单元，用于铝型材的高效锯切智能加工，通过软件智能组合可单独切割 45° 、90° 也可以 45° 、90° , 90° 、45° 两角度组合优化切割。

- 由于先进的机械机构，机器自身具备切割到 100% 的优势，切割单段尺寸只消耗一个锯片厚度的损耗，更有助于门窗设计优化率 100% 的极限优化率，切割方式采用双机头斜下机构，行业首创，并获得国家专利，切割阻力低。

- 系统自带优化系统，经过简单的系统设置，系统可以直接按照软件优化好的数据进行切割，客户也可以把门窗优化软件优化好的型材切割数据用 U 盘或网络导入到操作。

- 配备条码打印机，实时打印物料标识，实现工艺信息标识化，便于物料管理。

- 专用高精度主轴，使锯片运转平稳、加工精确度高。

- 整机运动副自动润滑系统，保证设备的耐用性及精确度。

- 毛坯料上料数量（ 7+1 ）循环上料。

→ 输入电源	Power supply	380V/50Hz
→ 总功率	Total motor power	18kW
→ 锯切电机	Sawing motor	3.0kW×3
→ 锯片转速	Motor speed	2850r/min
→ 工作压力	Working air pressure	0.6~0.8MPa
→ 锯片规格	Saw blade speciication	Ф500×4.4×Ф30mm 120T
→ 切割型材宽度	Cutting width	150mm
→ 切割型材高度	Cutting height	150mm
→ 锯切长度	Cutting length	200~6500mm
→ 上料长度范围	Feeding length	2500~6500mm
→ 锯切角度	range Sawing angle	45° 90°
→ 锯切长度精度	Precision of sawing	±0.1mm
→ 切割垂直度	length Cutting verticality	≤0.1mm
→ 外形尺寸	Overall dimension	13200×3000×2400mm
→ 重量	Weight	About 6550kg

- This machine is a CNC intelligent cutting center developed by our company for large-scale processing enterprises of aluminum proiles for system doors and windows and energy-saving doors and windows.

- German PA system and imported bus servo drive control unit are used for eicient sawing and intelligent processing of aluminum proiles. Through intelligent combination of software, 45° and 90° can be cut independently, or 45°, 90°, 90° and 45° can be combined to optimize cutting.

- Due to the advanced mechanical mechanism, the machine itself has the advantage of cutting to 100%. Cutting the size of a single section only consumes the loss of the thickness of a saw blade, which is more conducive to the ultimate optimization rate of 100% for the design optimization rate of doors and windows. The cutting method adopts the double-head oblique mechanism, which is theirst in the industry and has won the national patent, with low cutting resistance.

- The system has its own optimization system. After simple system setup, the system can directly cut according to the data optimized by the software, and customers can also import the proile cutting data optimized by the door and window optimization software into the operation by U disk or network.

- Equipped with barcode printer to print material identiication in realtime, realize process information identiication and facilitate material management.

- Special high-precision spindle makes the saw blade run smoothly and have high machining accuracy.

- The automatic lubrication system of the whole machine motion pair ensures the durability and accuracy of the equipment.

- Blank feeding quantity (7+1) is cyclically fed.
